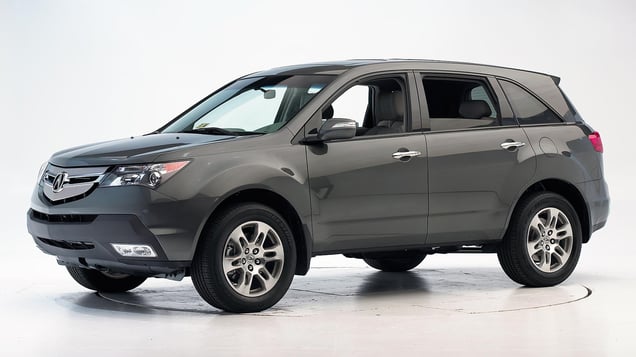

2010 Acura MDX
midsize luxury SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2007-13 models
Tested vehicle: 2007 Acura MDX 4D 4wd
The Acura MDX was redesigned for the 2007 model year. Frontal ratings are assigned by the Institute based on a test conducted by Honda as part of frontal crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF0614 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 8 |
| Center (cm) | 11 |
| Right (cm) | 11 |
| Brake pedal (cm) | 4 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | 1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF0614 |
|---|---|
| Head | |
| HIC-15 | 199 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 29 |
| Legs | |
| Femur force - left (kN) | 0.0 |
| Femur force - right (kN) | 2.2 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.37 |
| Maximum tibia index - right | 0.46 |
| Tibia axial force - left (kN) | 2.0 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 61 |
| Right | 44 |
Side: original test
Rating applies to 2010-13 models
Tested vehicle: 2010 Acura MDX 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
The Acura MDX was redesigned for the 2007 model year. Beginning with 2010 models, the side airbags were modified to improve occupant protection in side impact crashes. Side ratings are assigned by the Institute based on a test conducted by Honda as part of side crash test verification. Because there were no structural changes, the structure rating of the current model is based on both Honda's test and an earlier Institute test of a 2007 MDX model.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | CES0711 | VTS0907 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 | -15.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | VTS0907 |
|---|---|
| Head HIC-15 | 151 |
| Neck | |
| Tension (kN) | 1.0 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 24 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 34 |
| Average deflection (mm) | 30 |
| Maximum deflection rate (m/s) | 4.16 |
| Maximum viscous criterion (m/s) | 0.66 |
| Pelvis | |
| Iliac force (kN) | 2.1 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 27 |
| A-P moment (Nm) | 49 |
Passenger injury measures
| Test ID | VTS0907 |
|---|---|
| Head HIC-15 | 138 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 30 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 36 |
| Average deflection (mm) | 28 |
| Maximum deflection rate (m/s) | 2.87 |
| Maximum viscous criterion (m/s) | 0.49 |
| Pelvis | |
| Iliac force (kN) | 2.1 |
| Acetabulum force (kN) | 1.5 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 37 |
| A-P moment (Nm) | -50 |
Head restraints & seats
Seat type: Power leather seat (AHR)
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seat (AHR) |
|---|---|
| Geometry | |
| Backset (mm) | 40 |
| Distance below top of head (mm) | 28 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 13.3 |
| Head contact time (ms) | 68 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 355 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
