Moderate overlap front: original test
Rating applies to 2011-18 models

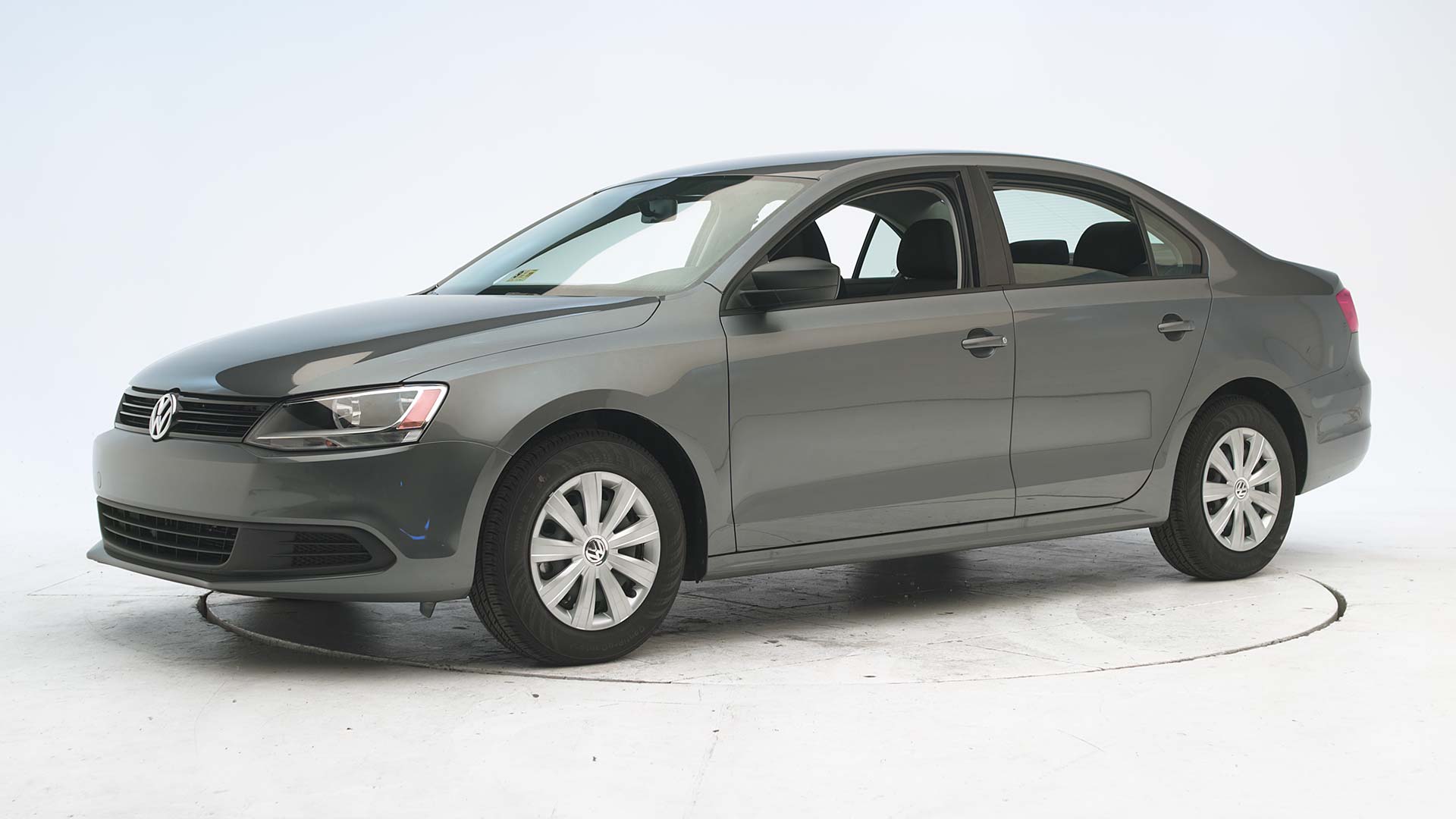

Tested vehicle: 2011 Volkswagen Jetta S 4-door
The Volkswagen Jetta sedan was redesigned for the 2011 model year. Two moderate overlap frontal tests of the Jetta were conducted, one by the Institute and the other by Volkswagen as part of frontal crash test verification. Ratings are based on both tests.
These ratings do not apply to the station wagon version of the Jetta, known as the Jetta SportWagen, which is built on a platform designed earlier.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Action shot taken during the Institute's moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well (Institute test car shown).
Smeared greasepaint indicates where the dummy's head hit the roof rail in the Institute's test.
Intrusion into the driver's space was minimal in both tests, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
Test ID | VTF1006 | CEF1011 |
---|---|---|
Footwell intrusion | ||
Footrest (cm) | 4 | 8 |
Left (cm) | 9 | 11 |
Center (cm) | 6 | 8 |
Right (cm) | 5 | 5 |
Brake pedal (cm) | 8 | 4 |
Instrument panel rearward movement | ||
Left (cm) | 1 | 2 |
Right (cm) | 2 | 1 |
Steering column movement | ||
Upward (cm) | -3 | 0 |
Rearward (cm) | -5 | -1 |
A-pillar rearward movement (cm) | 0 | 1 |
Driver injury measures
Test ID | VTF1006 | CEF1011 |
---|---|---|
Head | ||
HIC-15 | 173 | 250 |
Peak gs at hard contact | no contact | 53 |
Neck | ||
Tension (kN) | 1.6 | 1.2 |
Extension bending moment (Nm) | 25 | 21 |
Maximum Nij | 0.31 | 0.50 |
Chest maximum compression (mm) | 33 | 33 |
Legs | ||
Femur force - left (kN) | 0.8 | 3.7 |
Femur force - right (kN) | 1.5 | 1.7 |
Knee displacement - left (mm) | 0 | 6 |
Knee displacement - right (mm) | 2 | 11 |
Maximum tibia index - left | 0.28 | 0.40 |
Maximum tibia index - right | 0.49 | 0.76 |
Tibia axial force - left (kN) | 2.0 | 1.7 |
Tibia axial force - right (kN) | 3.3 | 1.6 |
Foot acceleration (g) | ||
Left | 72 | 100 |
Right | 124 | 123 |
Side: original test
Rating applies to 2011-18 models
Tested vehicle: 2011 Volkswagen Jetta TDI 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Volkswagen Jetta sedan was redesigned for the 2011 model year. Side ratings are assigned by the Institute based on a test conducted by Volkswagen as part of side crash test verification.
Note: The ratings do not apply to the station wagon version of the Jetta, known as the Jetta SportWagen, which is built on a platform designed earlier.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1004 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -13.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1004 |
---|---|
Head HIC-15 | 97 |
Neck | |
Tension (kN) | 0.8 |
Compression (kN) | 0.2 |
Shoulder | |
Lateral deflection (mm) | 43 |
Lateral force (kN) | 1.5 |
Torso | |
Maximum deflection (mm) | 43 |
Average deflection (mm) | 40 |
Maximum deflection rate (m/s) | 4.94 |
Maximum viscous criterion (m/s) | 0.98 |
Pelvis | |
Iliac force (kN) | 2.6 |
Acetabulum force (kN) | 2.5 |
Combined force (kN) | 4.9 |
Left femur | |
L-M force (kN) | 0.8 |
L-M moment (Nm) | 31 |
A-P moment (Nm) | 149 |
Passenger injury measures
Test ID | VTS1004 |
---|---|
Head HIC-15 | 313 |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 38 |
Lateral force (kN) | 1.2 |
Torso | |
Maximum deflection (mm) | 42 |
Average deflection (mm) | 40 |
Maximum deflection rate (m/s) | 3.83 |
Maximum viscous criterion (m/s) | 0.65 |
Pelvis | |
Iliac force (kN) | 0.7 |
Acetabulum force (kN) | 2.2 |
Combined force (kN) | 2.6 |
Left femur | |
L-M force (kN) | 0.3 |
L-M moment (Nm) | 59 |
A-P moment (Nm) | 57 |
Roof strength
Rating applies to 2011-18 models
Tested vehicle: 2011 Volkswagen Jetta S 4-door
Overall evaluation | |
---|---|
Curb weight | 2,963 lbs |
Peak force | 15,859 lbs |
Strength-to-weight ratio | 5.35 |
Head restraints & seats
Seat type: Manual cloth seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seat |
---|---|
Geometry | |
Backset (mm) | 35 |
Distance below top of head (mm) | 10 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 13.0 |
Head contact time (ms) | 53 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 38 |
Max neck tension (N) | 491 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
