Small overlap front: driver-side

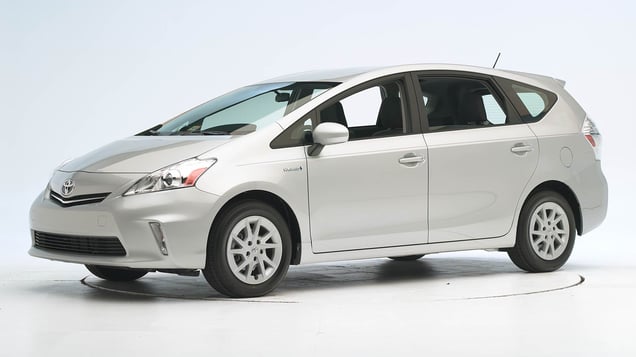

Tested vehicle: 2012 Toyota Prius v Two wagon
Rating applies to 2012-14 models
The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 13 cm to the right. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, permitting the head to hit the instrument panel. The side curtain airbag deployed too late during the crash, dropping onto the back of the head and pushing it outboard of the inflating curtain, leaving the dummy's head vulnerable to contact with side structure and outside objects. The side torso airbag deployed. |
|
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1217 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 35 |
| Footrest (cm) | 18 |
| Left toepan (cm) | 9 |
| Brake pedal (cm) | 7 |
| Parking brake (cm) | 20 |
| Rocker panel lateral average (cm) | 10 |
| Upper occupant compartment | |
| Steering column | 7 |
| Upper hinge pillar max (cm) | 19 |
| Upper dash (cm) | 22 |
| Lower instrument panel (cm) | 17 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1217 |
| Head | |
| HIC-15 | 138 |
| Peak gs at hard contact | 42 |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.36 |
| Chest maximum compression (mm) | 20 |
| Femur (kN) | |
| Left | 7.2 |
| Right | 1.8 |
| Knee displacement (mm) | |
| Left | 9 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 45 |
| Right | 0 |
| Maximum tibia index | |
| Left | 1.36 |
| Right | 0.81 |
| Tibia axial force (kN) | |
| Left | 3.1 |
| Right | 1.0 |
| Foot acceleration (g) | |
| Left | 91 |
| Right | 64 |
Moderate overlap front: original test
Tested vehicle: 2012 Toyota Prius v wagon
Rating applies to 2012-17 models
The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1107 |
| Footwell intrusion | |
| Footrest (cm) | 3 |
| Left (cm) | 7 |
| Center (cm) | 14 |
| Right (cm) | 6 |
| Brake pedal (cm) | 6 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | 3 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1107 |
| Head | |
| HIC-15 | 210 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 20 |
| Maximum Nij | 0.28 |
| Chest maximum compression (mm) | 24 |
| Legs | |
| Femur force - left (kN) | 1.9 |
| Femur force - right (kN) | 2.3 |
| Knee displacement - left (mm) | 2 |
| Knee displacement - right (mm) | 3 |
| Maximum tibia index - left | 0.39 |
| Maximum tibia index - right | 0.43 |
| Tibia axial force - left (kN) | 2.5 |
| Tibia axial force - right (kN) | 3.7 |
| Foot acceleration (g) | |
| Left | 66 |
| Right | 65 |
Side: original test
Tested vehicle: 2012 Toyota Prius v Three wagon with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
Rating applies to 2012 models
The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head pushed past the side curtain airbag and was hit by the window sill of the passenger door. This impact did not produce high head injury measures, but the head protection is inadequate. The side airbag didn’t unfurl completely during deployment, which contributed to the head moving outward excessively. |
|
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | CES1117 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -10.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES1117 |
| Head HIC-15 | 317 |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.6 |
| Shoulder | |
| Lateral deflection (mm) | 33 |
| Lateral force (kN) | 2.2 |
| Torso | |
| Maximum deflection (mm) | 30 |
| Average deflection (mm) | 21 |
| Maximum deflection rate (m/s) | 2.81 |
| Maximum viscous criterion (m/s) | 0.38 |
| Pelvis | |
| Iliac force (kN) | 2.5 |
| Acetabulum force (kN) | 1.3 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 32 |
| A-P moment (Nm) | 32 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES1117 |
| Head HIC-15 | 57 |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 30 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 31 |
| Average deflection (mm) | 15 |
| Maximum deflection rate (m/s) | 3.36 |
| Maximum viscous criterion (m/s) | 0.49 |
| Pelvis | |
| Iliac force (kN) | 0.6 |
| Acetabulum force (kN) | 2.8 |
| Combined force (kN) | 3.1 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 107 |
| A-P moment (Nm) | 22 |
Roof strength
Tested vehicle: 2012 Toyota Prius v Two wagon
Rating applies to 2012-17 models
| Overall evaluation | |
|---|---|
| Curb weight | 3,274 lbs |
| Peak force | 14,180 lbs |
| Strength-to-weight ratio | 4.33 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 27 |
| Distance below top of head (mm) | 32 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.3 |
| Head contact time (ms) | 60 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 407 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
