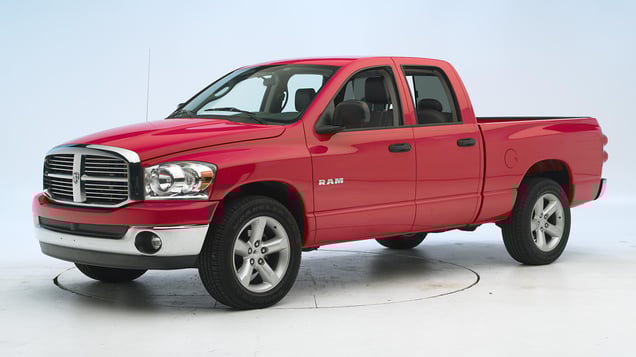

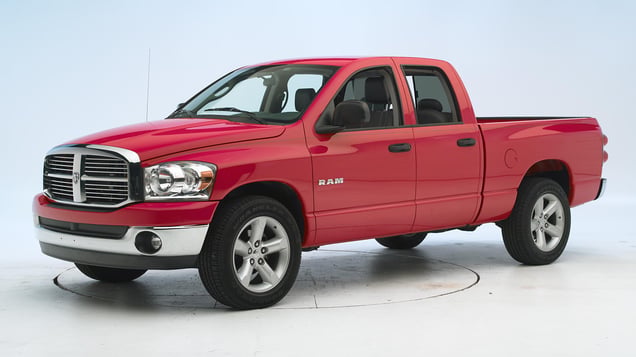

2008 Dodge Ram 1500
large pickup / Extended cab pickup
Moderate overlap front: original test
Tested vehicle: 2006 Dodge Ram 1500 SLT Quad Cab 2wd
Rating applies to 2006-08 models
The Dodge Ram 1500 was re-engineered for the 2006 model year. Frontal ratings are assigned by the Institute based on a test conducted by DaimlerChrysler.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF0401 |
| Footwell intrusion | |
| Footrest (cm) | 15 |
| Left (cm) | 12 |
| Center (cm) | 9 |
| Right (cm) | 3 |
| Brake pedal (cm) | 6 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 2 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF0401 |
| Head | |
| HIC-15 | 499 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.8 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.31 |
| Chest maximum compression (mm) | 34 |
| Legs | |
| Femur force - left (kN) | 4.5 |
| Femur force - right (kN) | 2.7 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.64 |
| Maximum tibia index - right | 0.19 |
| Tibia axial force - left (kN) | 2.3 |
| Tibia axial force - right (kN) | 1.1 |
| Foot acceleration (g) | |
| Left | 202 |
| Right | 49 |
Head restraints & seats
Seat type: Seats with adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Seats with adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 72 |
| Distance below top of head (mm) | 42 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 11.6 |
| Head contact time (ms) | 93 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 281 |
| Max neck tension (N) | 843 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
