2013 Audi Q5

midsize luxury SUV / 4-door SUV

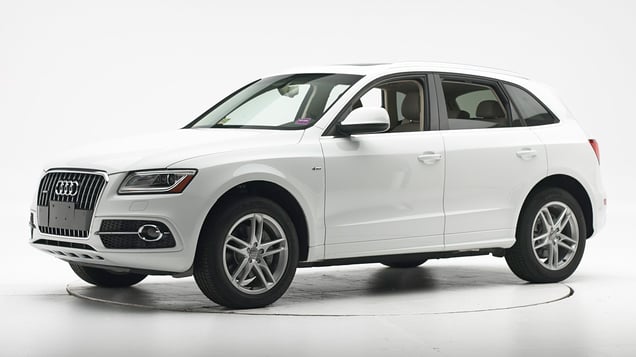

2013 Audi Q5 4-door SUV

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention: vehicle-to-vehicle
Optional system (built after October 2012)
Advanced
Optional system (built before November 2012)
Basic

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2009-17 models

Tested vehicle: 2009 Audi Q5 3.2 quattro 4-door 4wd

The Audi Q5 was introduced in the 2009 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.

Forces on the lower right leg were just high enough to indicate the possibility of injuries.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF0905
Footwell intrusion
Footrest (cm) 2
Left (cm) 3
Center (cm) 3
Right (cm) 4
Brake pedal (cm) 6
Instrument panel rearward movement
Left (cm) -1
Right (cm) 0
Steering column movement
Upward (cm) -2
Rearward (cm) -7
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF0905
Head
HIC-15 423
Peak gs at hard contact no contact
Neck
Tension (kN) 1.6
Extension bending moment (Nm) 10
Maximum Nij 0.34
Chest maximum compression (mm) 39
Legs
Femur force - left (kN) 1.8
Femur force - right (kN) 4.3
Knee displacement - left (mm) 0
Knee displacement - right (mm) 1
Maximum tibia index - left 0.24
Maximum tibia index - right 0.70
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 4.1
Foot acceleration (g)
Left 57
Right 67

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2009-17 models

Tested vehicle: 2009 Audi Q5 3.2 quattro 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Audi Q5 was introduced in the 2009 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES0908
B-pillar to longitudinal centerline of driver's seat (cm) -23.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES0908
Head HIC-15 81
Neck
Tension (kN) 1.1
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 21
Lateral force (kN) 1.1
Torso
Maximum deflection (mm) 26
Average deflection (mm) 22
Maximum deflection rate (m/s) 2.85
Maximum viscous criterion (m/s) 0.34
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 1.3
Combined force (kN) 2.7
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 52
A-P moment (Nm) -15

Passenger injury measures

Test ID CES0908
Head HIC-15 89
Neck
Tension (kN) 0.3
Compression (kN) 0.6
Shoulder
Lateral deflection (mm) 30
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 21
Average deflection (mm) 14
Maximum deflection rate (m/s) 2.67
Maximum viscous criterion (m/s) 0.27
Pelvis
Iliac force (kN) 1.9
Acetabulum force (kN) 2.2
Combined force (kN) 4.0
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 90
A-P moment (Nm) 17

How the side crash test is conducted

Roof strength

Rating applies to 2009-17 models

Tested vehicle: 2010 Audi Q5 3.2 Premium quattro 4-door 4wd

Overall evaluation
Curb weight 4,237 lbs
Peak force 18,684 lbs
Strength-to-weight ratio 4.41

How the roof strength test is conducted

Head restraints & seats

Seat type: Power seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power seats
Geometry
Backset (mm) 39
Distance below top of head (mm) 18
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.5
Head contact time (ms) 58
Force rating 1
Neck forces
Max neck shear force (N) 15
Max neck tension (N) 330

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Optional Audi Pre Sense Front

Package name

  • Optional Driver Assistance Package

Overall evaluation

Applies to 2013-16 models built after October 2012

Advanced
Advanced
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, impact speed was reduced by 11 mph.
  • In the 25 mph test, this vehicle failed to slow.

System details

  • Optional Audi Pre Sense Front

Package name

  • Optional Driver Assistance Package

Overall evaluation

Applies to 2013 models built before November 2012

Basic
Basic
with optional equipment
  • This system meets the requirements for forward collision warning.
  • Autobrake not available.

How front crash prevention is evaluated
