Moderate overlap front: original test
Rating applies to 2009-17 models

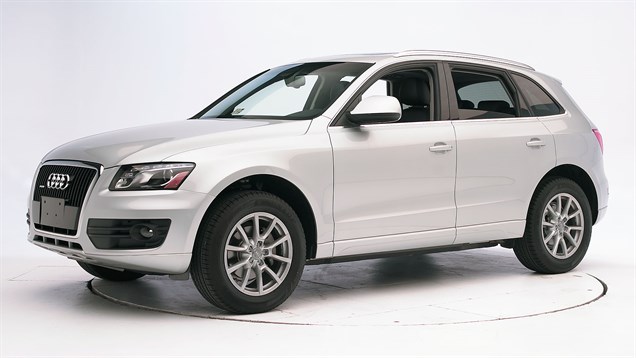

Tested vehicle: 2009 Audi Q5 3.2 quattro 4-door 4wd
The Audi Q5 was introduced in the 2009 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
![](/api/ratings/images/2252.jpg?w=480)
Action shot taken during the frontal offset crash test.
![](/api/ratings/images/2253.jpg?w=480)
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
![](/api/ratings/images/2255.jpg?w=480)
Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.
![](/api/ratings/images/2254.jpg?w=480)
Forces on the lower right leg were just high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
Test ID | CEF0905 |
---|---|
Footwell intrusion | |
Footrest (cm) | 2 |
Left (cm) | 3 |
Center (cm) | 3 |
Right (cm) | 4 |
Brake pedal (cm) | 6 |
Instrument panel rearward movement | |
Left (cm) | -1 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | -2 |
Rearward (cm) | -7 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | CEF0905 |
---|---|
Head | |
HIC-15 | 423 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.6 |
Extension bending moment (Nm) | 10 |
Maximum Nij | 0.34 |
Chest maximum compression (mm) | 39 |
Legs | |
Femur force - left (kN) | 1.8 |
Femur force - right (kN) | 4.3 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.24 |
Maximum tibia index - right | 0.70 |
Tibia axial force - left (kN) | 1.5 |
Tibia axial force - right (kN) | 4.1 |
Foot acceleration (g) | |
Left | 57 |
Right | 67 |
Side: original test
Rating applies to 2009-17 models
Tested vehicle: 2009 Audi Q5 3.2 quattro 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Audi Q5 was introduced in the 2009 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
![](/api/ratings/images/2256.jpg?w=480)
View of the vehicle and barrier just after the crash test.
![](/api/ratings/images/2257.jpg?w=480)
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
![](/api/ratings/images/2258.jpg?w=480)
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
![](/api/ratings/images/2259.jpg?w=480)
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Test ID | CES0908 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -23.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | CES0908 |
---|---|
Head HIC-15 | 81 |
Neck | |
Tension (kN) | 1.1 |
Compression (kN) | 0.3 |
Shoulder | |
Lateral deflection (mm) | 21 |
Lateral force (kN) | 1.1 |
Torso | |
Maximum deflection (mm) | 26 |
Average deflection (mm) | 22 |
Maximum deflection rate (m/s) | 2.85 |
Maximum viscous criterion (m/s) | 0.34 |
Pelvis | |
Iliac force (kN) | 1.5 |
Acetabulum force (kN) | 1.3 |
Combined force (kN) | 2.7 |
Left femur | |
L-M force (kN) | 0.5 |
L-M moment (Nm) | 52 |
A-P moment (Nm) | -15 |
Passenger injury measures
Test ID | CES0908 |
---|---|
Head HIC-15 | 89 |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 30 |
Lateral force (kN) | 1.3 |
Torso | |
Maximum deflection (mm) | 21 |
Average deflection (mm) | 14 |
Maximum deflection rate (m/s) | 2.67 |
Maximum viscous criterion (m/s) | 0.27 |
Pelvis | |
Iliac force (kN) | 1.9 |
Acetabulum force (kN) | 2.2 |
Combined force (kN) | 4.0 |
Left femur | |
L-M force (kN) | 0.3 |
L-M moment (Nm) | 90 |
A-P moment (Nm) | 17 |
Roof strength
Rating applies to 2009-17 models
Tested vehicle: 2010 Audi Q5 3.2 Premium quattro 4-door 4wd
Overall evaluation | |
---|---|
Curb weight | 4,237 lbs |
Peak force | 18,684 lbs |
Strength-to-weight ratio | 4.41 |
Head restraints & seats
Seat type: Power seats
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power seats |
---|---|
Geometry | |
Backset (mm) | 39 |
Distance below top of head (mm) | 18 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.5 |
Head contact time (ms) | 58 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 15 |
Max neck tension (N) | 330 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
