Small overlap front: driver-side
Rating applies to 2015-16 models

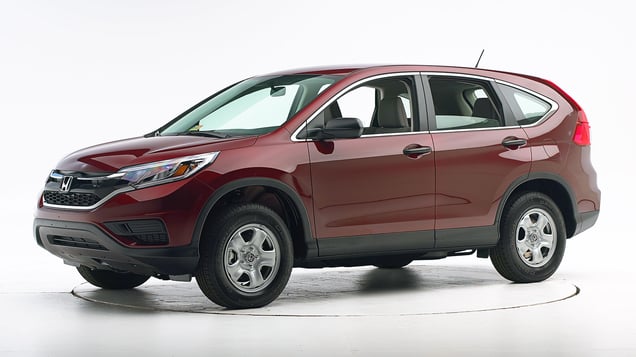

Tested vehicle: 2015 Honda CR-V LX 4-door 4wd
The Honda CR-V was redesigned for the 2012 model year. Beginning with 2015 models, changes were made to the front-end and occupant compartment structure and restraint system to improve occupant protection in small overlap frontal crashes.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
![](/api/ratings/images/3379.jpg?w=480)
Action shot taken during the small overlap frontal crash test.
![](/api/ratings/images/3380.jpg?w=480)
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.
![](/api/ratings/images/3382.jpg?w=480)
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
![](/api/ratings/images/3381.jpg?w=480)
There was little intrusion into the driver's space, but there was still a moderate risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1444 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 3 |
Footrest (cm) | 5 |
Left toepan (cm) | 3 |
Brake pedal (cm) | 4 |
Parking brake (cm) | 13 |
Rocker panel lateral average (cm) | 2 |
Upper occupant compartment | |
Steering column | 2 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 4 |
Lower instrument panel (cm) | 4 |
Driver injury measures
Test ID | CEN1444 |
---|---|
Head | |
HIC-15 | 137 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.3 |
Extension bending moment (Nm) | 17 |
Maximum Nij | 0.30 |
Chest maximum compression (mm) | 22 |
Femur (kN) | |
Left | 0.1 |
Right | 0.1 |
Knee displacement (mm) | |
Left | 0 |
Right | 0 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.87 |
Right | 0.59 |
Tibia axial force (kN) | |
Left | 2.3 |
Right | 1.4 |
Foot acceleration (g) | |
Left | 56 |
Right | 61 |
Moderate overlap front: original test
Rating applies to 2015-16 models
Tested vehicle: 2015 Honda CR-V EX 4-door 4wd
The Honda CR-V was redesigned for the 2012 model year. Beginning with 2015 models, changes were made to the structure and restraint system. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda as part of frontal crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1408 |
---|---|
Footwell intrusion | |
Footrest (cm) | 5 |
Left (cm) | 9 |
Center (cm) | 12 |
Right (cm) | 14 |
Brake pedal (cm) | 4 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | 0 |
Rearward (cm) | -4 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF1408 |
---|---|
Head | |
HIC-15 | 310 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 26 |
Maximum Nij | 0.25 |
Chest maximum compression (mm) | 26 |
Legs | |
Femur force - left (kN) | 0.3 |
Femur force - right (kN) | 1.0 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.32 |
Maximum tibia index - right | 0.83 |
Tibia axial force - left (kN) | 1.4 |
Tibia axial force - right (kN) | 4.2 |
Foot acceleration (g) | |
Left | 72 |
Right | 105 |
Side: original test
Rating applies to 2015-16 models
Tested vehicle: 2015 Honda CR-V EX 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Honda CR-V was redesigned for the 2012 model year. Beginning with 2015 models, changes were made to the structure and restraint system. Side ratings are assigned by the Institute based on a test conducted by Honda as part of side crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1412 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -14.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1412 |
---|---|
Head HIC-15 | 318 |
Neck | |
Tension (kN) | 1.1 |
Compression (kN) | 0.2 |
Shoulder | |
Lateral deflection (mm) | 46 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 35 |
Average deflection (mm) | 29 |
Maximum deflection rate (m/s) | 3.50 |
Maximum viscous criterion (m/s) | 0.46 |
Pelvis | |
Iliac force (kN) | 2.1 |
Acetabulum force (kN) | 1.4 |
Combined force (kN) | 3.4 |
Left femur | |
L-M force (kN) | 0.7 |
L-M moment (Nm) | 17 |
A-P moment (Nm) | 101 |
Passenger injury measures
Test ID | VTS1412 |
---|---|
Head HIC-15 | 94 |
Neck | |
Tension (kN) | 0.1 |
Compression (kN) | 0.7 |
Shoulder | |
Lateral deflection (mm) | 45 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 33 |
Average deflection (mm) | 26 |
Maximum deflection rate (m/s) | 4.05 |
Maximum viscous criterion (m/s) | 0.53 |
Pelvis | |
Iliac force (kN) | 0.6 |
Acetabulum force (kN) | 1.6 |
Combined force (kN) | 1.9 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 24 |
A-P moment (Nm) | 88 |
Roof strength
Rating applies to 2012-16 models
Tested vehicle: 2012 Honda CR-V LX 4-door 4wd
Overall evaluation | |
---|---|
Curb weight | 3,379 lbs |
Peak force | 17,159 lbs |
Strength-to-weight ratio | 5.08 |
Head restraints & seats
Seat type: Manual cloth seats
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Manual cloth seats |
---|---|
Geometry | |
Backset (mm) | 28 |
Distance below top of head (mm) | 15 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.1 |
Head contact time (ms) | 58 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 402 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
Front crash prevention: vehicle-to-vehicle
Child seat anchors
Rating applies to 2015-16 models
Overall evaluation |
|
Vehicle trim | Touring |
Seat type | leather |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position.
Note: When anchors are borrowed, they aren't available to use in their designated positions.
Overall evaluation |
|
Vehicle trim | Touring |
Seat type | leather |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
|
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. |
thether anchor symbol
|
Tether anchor |
lower anchor symbol
|
Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
|
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
2 | |
Tether anchor | |
hard-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
1 dedicated anchor and 1 that can be borrowed from seat 3 | |
too deep in seat | |
not too much force needed to attach | |
difficult to maneuver around anchors | |
3 | |
Tether anchor | |
easy-to-find location | |
other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
difficult to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 0 |
Clearance angle (degrees) | 60 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 0 |
Clearance angle (degrees) | 49 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
No |
Seat position 22
Lower anchor A | |
---|---|
Lower latch is shared for this seat position | |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 0 |
Clearance angle (degrees) | 50 |
Tether anchor | |
Location | Roof |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 0 |
Clearance angle (degrees) | 55 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 0 |
Clearance angle (degrees) | 60 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
No |
