2013 Nissan Rogue

small SUV / 4-door SUV

2013 Nissan Rogue 4-door SUV

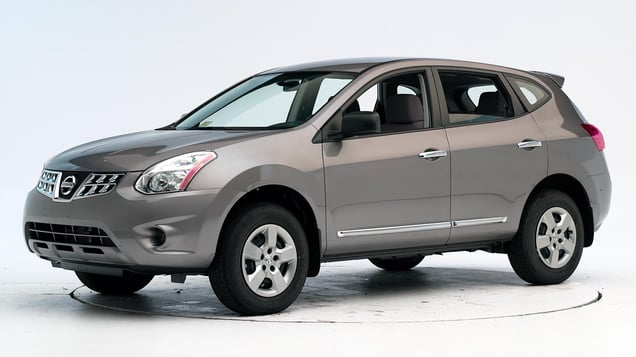

2012 Nissan Rogue shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention
Not available

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2008-13 models

Tested vehicle: 2012 Nissan Rogue S 4-door 4wd

The Nissan Rogue was introduced in the 2008 model year. The vehicle was renamed the Rogue Select in the 2014 model year to distinguish it from the redesigned 2014 Rogue. The Rogue Select is less expensive and shares no ratings with 2014 and later models of the Rogue.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but slid off the left side, leaving the head vulnerable to contact with forward structure. The steering column moved 15 cm to the right as well as 15 cm upward, contributing to inadequate protection for the head and allowing little airbag cushioning for the chest. The side curtain airbag deployed and had sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space wasn't maintained well.

The dummy’s head contacted the frontal airbag but then slid off the left side as the steering column moved upward and to the right. The side curtain airbag extended far enough forward toward the A-pillar to protect the head from contact with forward side structure.

Door hinge pillar and instrument panel intrusion was extensive and contributed to a significant risk of injury to the left lower leg and a moderate risk to the left foot.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1224
Lower occupant compartment
Lower hinge pillar max (cm) 38
Footrest (cm) 24
Left toepan (cm) 13
Brake pedal (cm) 5
Parking brake (cm) 18
Rocker panel lateral average (cm) 6
Upper occupant compartment
Steering column 6
Upper hinge pillar max (cm) 22
Upper dash (cm) 24
Lower instrument panel (cm) 27

Driver injury measures

Test ID CEN1224
Head
HIC-15 82
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 10
Maximum Nij 0.16
Chest maximum compression (mm) 24
Femur (kN)
Left 3.2
Right 1.0
Knee displacement (mm)
Left 9
Right 2
Knee-thigh-hip injury risk (%)
Left 1
Right 0
Maximum tibia index
Left 1.15
Right 0.41
Tibia axial force (kN)
Left 4.0
Right 0.6
Foot acceleration (g)
Left 153
Right 40

How the driver-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2008-13 models

Tested vehicle: 2008 Nissan Rogue S 4-door 4wd

The Nissan Rogue was introduced in the 2008 model year. The vehicle was renamed the Rogue Select in the 2014 model year to distinguish it from the redesigned 2014 Rogue. The Rogue Select is less expensive and shares no ratings with the 2014 Rogue.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well (dummy's head obscured by deployed side curtain airbag).

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag and dislodged headliner during rebound.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF0812
Footwell intrusion
Footrest (cm) 7
Left (cm) 13
Center (cm) 7
Right (cm) 10
Brake pedal (cm) 8
Instrument panel rearward movement
Left (cm) 2
Right (cm) 3
Steering column movement
Upward (cm) 0
Rearward (cm) -2
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID CEF0812
Head
HIC-15 298
Peak gs at hard contact 73
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 25
Maximum Nij 0.29
Chest maximum compression (mm) 25
Legs
Femur force - left (kN) 0.1
Femur force - right (kN) 0.3
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.42
Maximum tibia index - right 0.42
Tibia axial force - left (kN) 1.2
Tibia axial force - right (kN) 1.2
Foot acceleration (g)
Left 48
Right 84

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2008-13 models

Tested vehicle: 2008 Nissan Rogue S 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Nissan Rogue was introduced in the 2008 model year. The vehicle was renamed the Rogue Select in the 2014 model year to distinguish it from the redesigned 2014 Rogue. The Rogue Select is less expensive and shares no ratings with 2014 and later models of the Rogue.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES0828
B-pillar to longitudinal centerline of driver's seat (cm) -12.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES0828
Head HIC-15 74
Neck
Tension (kN) 0.7
Compression (kN) 0.1
Shoulder
Lateral deflection (mm) 29
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 23
Average deflection (mm) 21
Maximum deflection rate (m/s) 4.04
Maximum viscous criterion (m/s) 0.30
Pelvis
Iliac force (kN) 0.7
Acetabulum force (kN) 2.3
Combined force (kN) 2.7
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 124
A-P moment (Nm) 34

Passenger injury measures

Test ID CES0828
Head HIC-15 111
Neck
Tension (kN) 0.0
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 32
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 23
Average deflection (mm) 17
Maximum deflection rate (m/s) 2.52
Maximum viscous criterion (m/s) 0.21
Pelvis
Iliac force (kN) 0.2
Acetabulum force (kN) 2.6
Combined force (kN) 2.6
Left femur
L-M force (kN) 0.6
L-M moment (Nm) 51
A-P moment (Nm) -28

How the side crash test is conducted

Roof strength

Rating applies to 2008-13 models

Tested vehicle: 2009 Nissan Rogue S 4-door 2wd

(Curb weight from 2008 Nissan Rogue S 4-door 4wd)

Overall evaluation
Curb weight 3,430 lbs
Peak force 11,460 lbs
Strength-to-weight ratio 3.34

How the roof strength test is conducted

Head restraints & seats

Seat type: Manual cloth seats AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seats AHR
Geometry
Backset (mm) 32
Distance below top of head (mm) 42
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.6
Head contact time (ms) 63
Force rating 1
Neck forces
Max neck shear force (N) 30
Max neck tension (N) 596

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
